Multiplier plugin

Preamble:
I'm not a programmer, almost all line of cods are stolen (including from me), especially from Emmanuel and Tobias.
I've rewrite it from scratch.
So, I've split the Paste special and distribute plugin on two separate plugins.
This one is Multiplier plugin v1 which replace Paste special action.
Also have some news:
1. The most important: it work with selection and no more with copy;
2. Are under Tool->Multiply...
3. I've add some improvement which I invite You to discover.

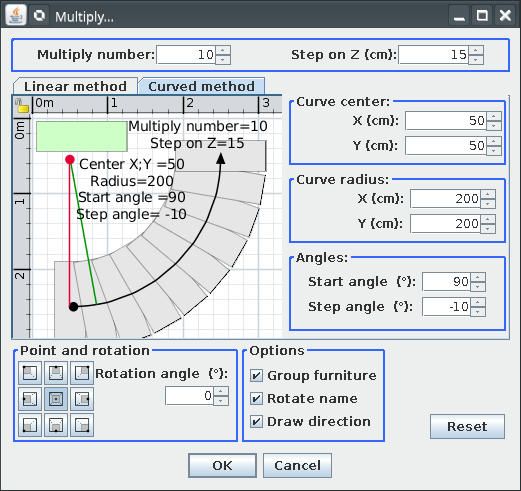

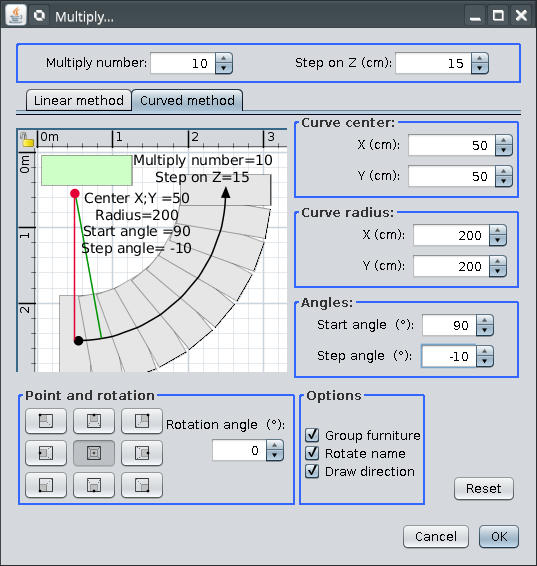

It look like this (on default and nimbus look&fill)

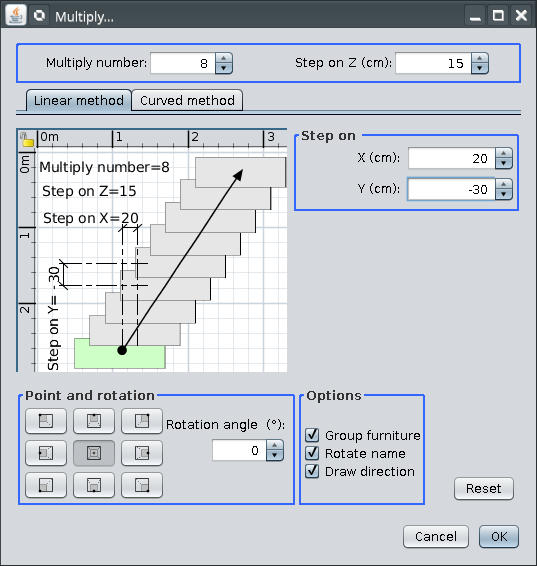

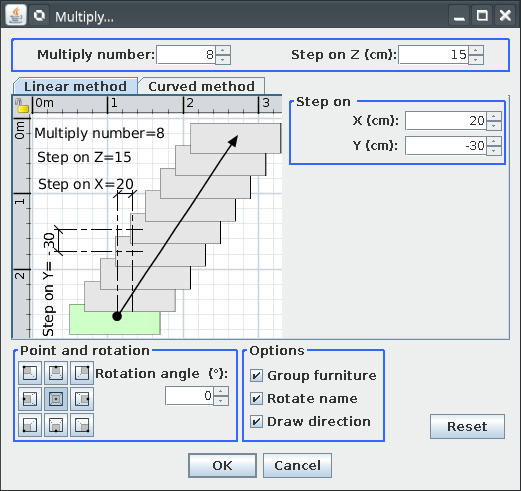

and here are a screenshot:

I must mention the point position are relevant only for curved method.
You are invited to risk and discover bugs but don't make illusion from me to solve them.
----------------------------------------
A computer program does what you tell it to do, not what you want it to do. Murphy's Law (Greer's Third Law)
When all else fails, read the instructions.Murphy's Law
[Sep 29, 2020, 6:48:03 PM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
Gildaniel
Advanced Member
Member's Avatar

Russia
Joined: Aug 11, 2017
Post Count: 135
Status: Offline
Reply to this Post  Reply with Quote
Re: Multiplier plugin

Dear Dorin!
Thank you for very usefull plugin!

I often need to copy log walls to exact distance (to next building axis) - this tool is more handy for this

Is it possible to make user button on button bar somehow?
[Sep 30, 2020, 11:01:58 AM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
dorin
Advanced Member
Member's Avatar

Romania
Joined: Apr 24, 2014
Post Count: 571
Status: Offline
Reply to this Post  Reply with Quote
Re: Multiplier plugin

Look on the toolbar and You will find it (something yellow with a red star)
----------------------------------------
A computer program does what you tell it to do, not what you want it to do. Murphy's Law (Greer's Third Law)
When all else fails, read the instructions.Murphy's Law
[Sep 30, 2020, 11:30:56 AM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
Gildaniel
Advanced Member
Member's Avatar

Russia
Joined: Aug 11, 2017
Post Count: 135
Status: Offline
Reply to this Post  Reply with Quote
Re: Multiplier plugin

Great, found it!
[Sep 30, 2020, 2:55:35 PM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
harbinger
Member
Member's Avatar

US
Joined: Feb 27, 2014
Post Count: 87
Status: Offline
Reply to this Post  Reply with Quote
Re: Multiplier plugin

This is a wonderful intermediate workaround until we get a standard feature in SH3D (as I wished for here). I intend to be using this alot, and hope you keep perfecting it! cool
[Sep 30, 2020, 9:21:10 PM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
dorin
Advanced Member
Member's Avatar

Romania
Joined: Apr 24, 2014
Post Count: 571
Status: Offline
Reply to this Post  Reply with Quote
Re: Multiplier plugin

New version Multiplier v1.1 on mediafire and Multiplier v1.1 on sourceforge.

I fixed a bug in the order of creation.
Thanks Emmanuel to open my eyes cool .
----------------------------------------
A computer program does what you tell it to do, not what you want it to do. Murphy's Law (Greer's Third Law)
When all else fails, read the instructions.Murphy's Law
[Nov 21, 2020, 8:16:58 PM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
dorin
Advanced Member
Member's Avatar

Romania
Joined: Apr 24, 2014
Post Count: 571
Status: Offline
Reply to this Post  Reply with Quote
Re: Multiplier plugin

New version 1.2
-add a better undo/redo
-add a "M" on icon to avoid confusion


Also on Source Forge
----------------------------------------
A computer program does what you tell it to do, not what you want it to do. Murphy's Law (Greer's Third Law)
When all else fails, read the instructions.Murphy's Law
[Apr 24, 2021, 9:05:13 AM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
Puybaret
Expert
Member's Avatar

France
Joined: Nov 7, 2005
Post Count: 9261
Status: Offline
Reply to this Post  Reply with Quote
Re: Multiplier plugin

Thank you Dorin for this update smile
----------------------------------------
Emmanuel Puybaret, Sweet Home 3D developer
[Apr 24, 2021, 1:28:42 PM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
dorin
Advanced Member
Member's Avatar

Romania
Joined: Apr 24, 2014
Post Count: 571
Status: Offline
Reply to this Post  Reply with Quote
Re: Multiplier plugin

New version 2.0
Special thanks to @Daniels118 who have made the entire hard work.
A lot of math problems to which the answers can not be found even on the net.
My part on this plugin was to confused him as much as possible.
Not too much news for about four months of work:
-Rewrite it from scratch;
-Made the UI to look more austere by eliminating some useless items;
-Add rotate for all items and rotate name;
-Added few new features on curved method:
--two direction buttons, CCW and CW;
--curve rotate angle;
--five radio buttons:
---1.Fixed step;
---2.Touch on top;
---3.Touch at middle;
---4.Touch on bottom;
---5.Uniform on ellipse;
--Add the radii length;

For options 2, 3, and 4, on plan, near the ellipse center,
will appear a label with recommended number of pieces to exactly cover the entire ellipse.

How to use it?
Your imagination is the limit.

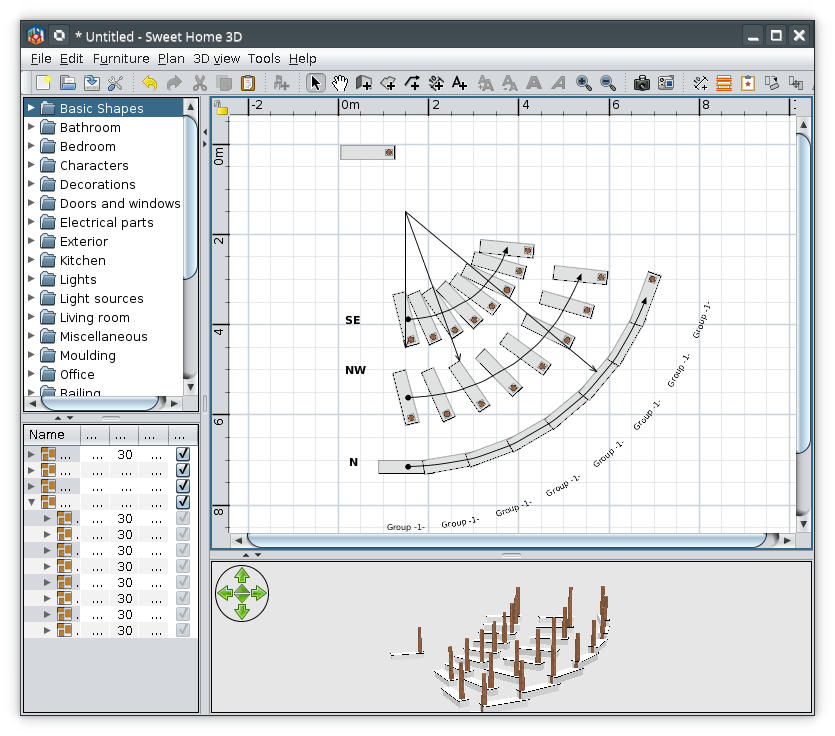

Some screenshots:







Good lack!

Also on SourceForge
----------------------------------------
A computer program does what you tell it to do, not what you want it to do. Murphy's Law (Greer's Third Law)
When all else fails, read the instructions.Murphy's Law
[Dec 7, 2023, 7:55:54 PM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
Keet
Advanced Member
Member's Avatar

Netherlands
Joined: Apr 8, 2022
Post Count: 858
Status: Offline
Reply to this Post  Reply with Quote
Re: Multiplier plugin

laughing That's is probably what was needed in this thread: https://sweethome3d.com/support/forum/viewthread_thread,12794
As I had to use two different calculators to get the numbers for the segment coordinates I can understand that the math was not easy.
I use this plugin quite often. Thank you to the both of you!
[Dec 7, 2023, 10:24:29 PM] Show Printable Version of Post    View Member Profile    Send Private Message [Link] Report threatening or abusive post: please login first  Go to top
