Sweet Home 3D Forum

Category: Open discussions

Forum: New versions

Thread: Staircase generator plug-in

No member browsing this thread

Thread Status: Active
Total posts in this thread: 68

[ ]

Author

This topic has been viewed 1024677 times and has 67 replies

Xlance
Advanced Member

Joined: Mar 23, 2020
Post Count: 116
Status: Offline


Re: Advanced Staircase generator plug-in v4.0

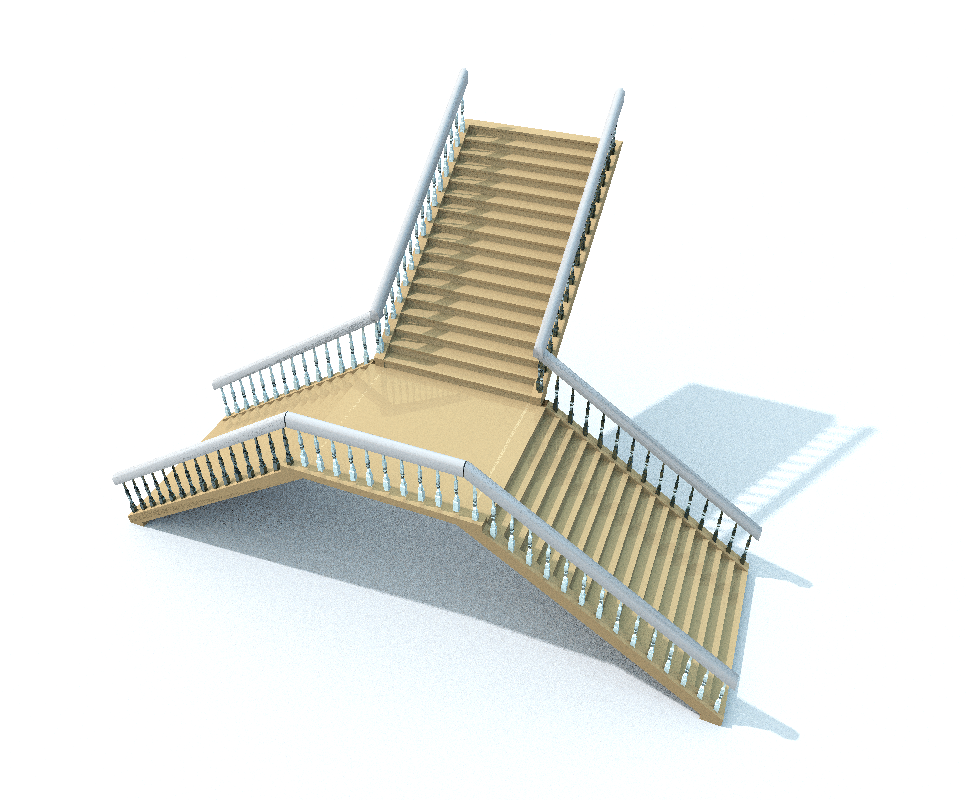

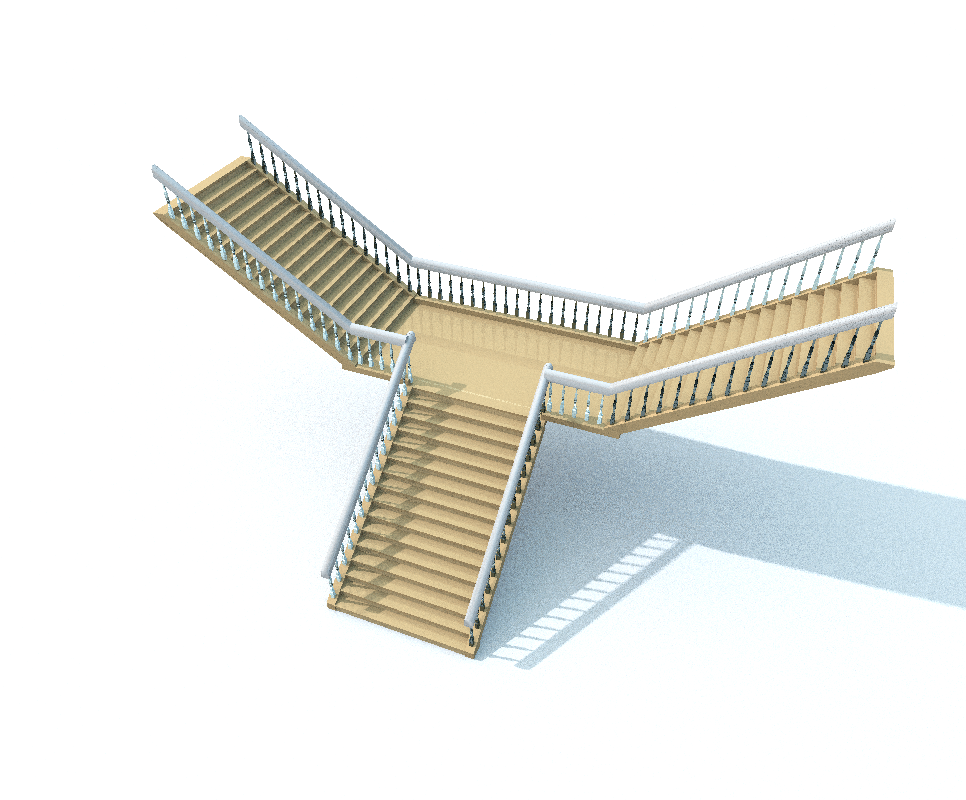

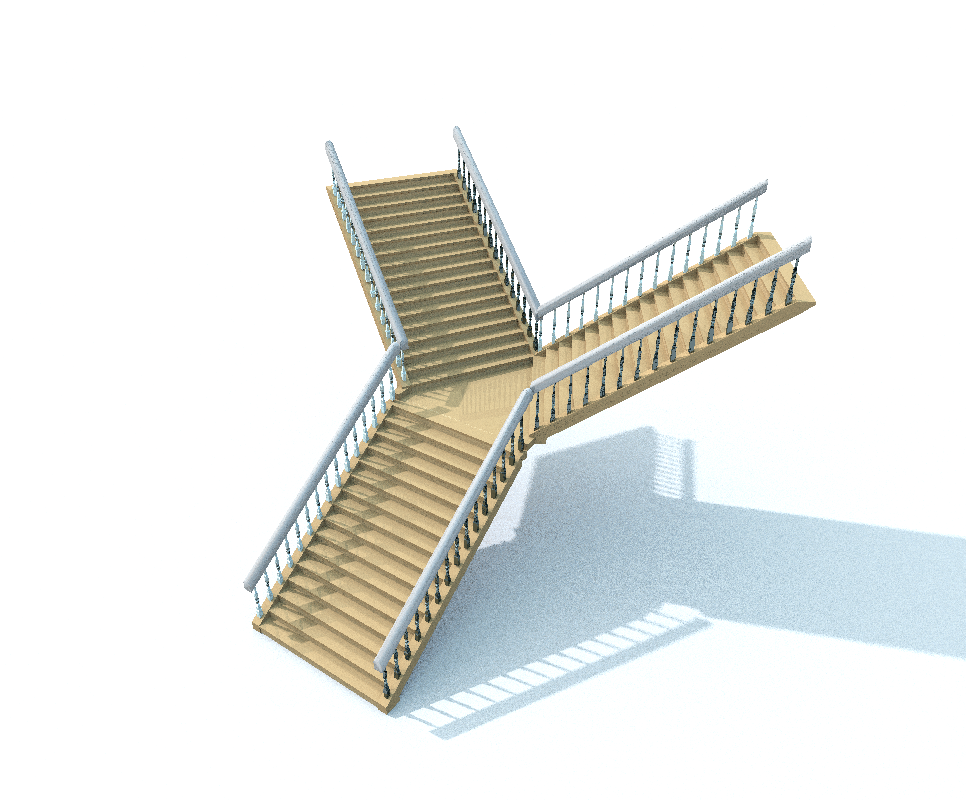

The Staircase Generator is a plug-in designed for Sweet Home 3D that allows users to create highly customizable 3D staircases. The tool features a comprehensive parameters menu for fine-tuning dimensions, structural elements, handrails, and midrails. It also includes an integrated 2D Shape Designer for creating custom handrail profiles.

Real-World Application: Whether you are an interior designer pitching a sleek, modern glass-railing loft, or an architect ensuring a multi-story traditional home meets building codes, this plug-in provides the exact geometrical control you need.

https://sourceforge.net/p/sweethome3d/plug-ins/60/
----------------------------------------

Windows 64bit | Intel i7 | 8GB Ram | SH3D 7.5 + Plugins

[Feb 26, 2026, 1:07:17 PM]

[Link]

deschmal
Newbie

Joined: Sep 7, 2025
Post Count: 3
Status: Offline


Re: Advanced Staircase generator plug-in v4.0

Hi Xlance,
v4.0 looks really great and I love the more detailed options!
However, one flaw that I found is that when you select "U shaped", the generator will create a "U shaped with bottom landing instead" so something seems to be linked incorrectly there.

Thanks for the nice work!

[Mar 12, 2026, 6:58:12 PM]

[Link]

deschmal
Newbie

Joined: Sep 7, 2025
Post Count: 3
Status: Offline


Re: Advanced Staircase generator plug-in v4.0

The error is on line 441:

				return createUShapedStaircaseShapes(stairCount, firstStairCount, 1, turnStairCount, stairWidth, stairDepth, stairHeight, treadOffset, treadThickness, true, riserThickness,

should be

				return createUShapedStaircaseShapes(stairCount, firstStairCount, turnStairCount, turnStairCount, stairWidth, stairDepth, stairHeight, treadOffset, treadThickness, true, riserThickness,

[Mar 15, 2026, 9:22:15 PM]

[Link]

Xlance
Advanced Member

Joined: Mar 23, 2020
Post Count: 116
Status: Offline


Re: Advanced Staircase generator plug-in v4.0

@Dorin
@deschmal
Fixed glitch and uploaded corrected plugin as per @deschmal
with organised code as per @Dorin on:
https://sourceforge.net/p/sweethome3d/plug-ins/60/

Thank You :-)
----------------------------------------

Windows 64bit | Intel i7 | 8GB Ram | SH3D 7.5 + Plugins

[Mar 16, 2026, 11:39:44 AM]

[Link]

deschmal
Newbie

Joined: Sep 7, 2025
Post Count: 3
Status: Offline


Re: Advanced Staircase generator plug-in v4.0

Thanks, seems to be working fine :-)

[Mar 16, 2026, 8:28:32 PM]

[Link]

knoxsooner
Newbie

United States
Joined: Mar 13, 2026
Post Count: 2
Status: Offline


Re: Staircase generator plug-in

Where do I find the new 'generate staircase'? I don't have a menu titled 'Tools'.

[Mar 16, 2026, 8:49:36 PM]

[Link]

Sindrela_Casper
Newbie

Singapore
Joined: Mar 21, 2026
Post Count: 3
Status: Offline


Re: Staircase generator plug-in

That’s a great question about the textures. In Sweet Home 3D, getting the lighting right can be half the battle, especially when you're trying to make the 3D view look realistic without it getting too cluttered.
I’ve found that if a specific texture or wallpaper looks a bit "busy" or overwhelming in the render, it helps to check the tonal values first. Sometimes I'll run a quick preview of my source images through this https://www.thetoolapp.com/color-to-black-and-white-online/ just to see how the contrast looks without the color distracting me. It’s a handy trick for making sure your patterns aren't going to clash once you hit that "Create photo" button.

[Apr 15, 2026, 10:25:22 AM]

[Link]

Keet
Advanced Member

Netherlands
Joined: Apr 8, 2022
Post Count: 1769
Status: Offline


Re: Staircase generator plug-in

Once again SPAM from Sindrela_Casper. Don't click the link.
Everything from Sindrela_Casper is AI generated nonsense.
----------------------------------------
Dodecagon.nl
1300+ 3D models, manuals, and projects

[Apr 15, 2026, 2:01:34 PM]

[Link]

[ ]
