Solar house
Hi, here are pictures of a next project... Solar panels for electricity and warm water... Rainwater harvesting... Glazed windows facing South...
on the road on the garden
----------------------------------------
Evil progresses when good people do nothing! --- SH3D 7.1 and nothing else - W11 64b in 4K
Western Europa
Joined: Mar 29, 2014
Post Count: 2614
Status:
Offline
Re: Solar house
Thanks. Here is the kitchen from living. You can see that the kitchen can be opened or closed with sliding doors... According to the plan, the door is in left corner and the fridge is in right corner.
July 14th : HAPPY FRENCH NATIONAL DAY !!!
----------------------------------------
Evil progresses when good people do nothing! --- SH3D 7.1 and nothing else - W11 64b in 4K
----------------------------------------
[Edit 1 times,
last edit by bdfd at Jul 14, 2016, 7:16:56 AM]
Western Europa
Joined: Mar 29, 2014
Post Count: 2614
Status:
Offline
Re: Solar house
Thanks.
Here is a view of living from kitchen. Bow-window is at left.
----------------------------------------
Evil progresses when good people do nothing! --- SH3D 7.1 and nothing else - W11 64b in 4K
UK
Joined: May 8, 2016
Post Count: 434
Status:
Offline
Re: Solar house
Another good looking project bdfd, nice one too, close to your heart i imagine being with solar panels and rain collection. if i may ask, when you create your own furniture, do you create the door handles or get them from a site?
Western Europa
Joined: Mar 29, 2014
Post Count: 2614
Status:
Offline
Re: Solar house
Hi, Thank you friends.
I did not invent the 'hot water'...

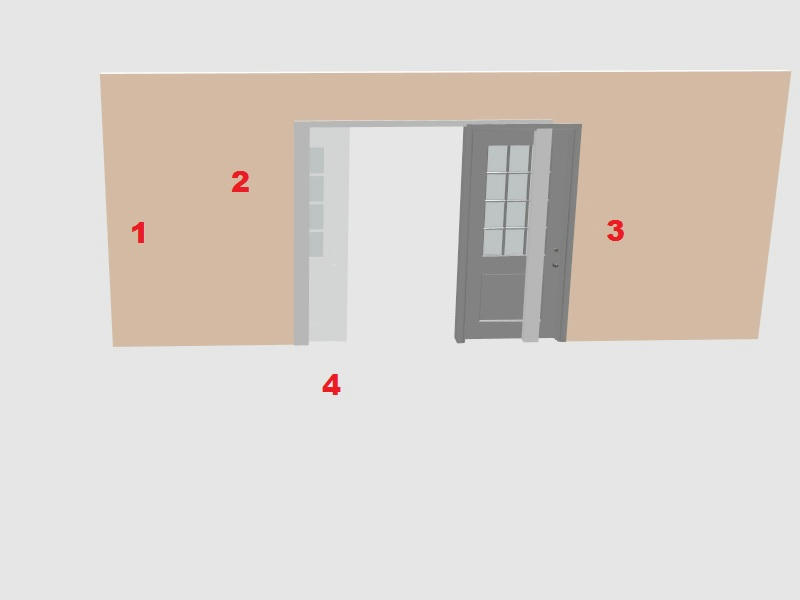

@ mirakels, here is the 'user manual' : 1. You choose your wall to place the opening. 2. You just place a door frame in the wall. 3. You set the glass door half open (or closed) in grey. 4. You reduce the depth (thickness) of this glass door in white and voila !
@miker777 : I used only free objects in zipped files on SH3D website. - NICE 07/14/2016 (over 80 dead) : All against barbarism
----------------------------------------
Evil progresses when good people do nothing! --- SH3D 7.1 and nothing else - W11 64b in 4K
----------------------------------------
[Edit 1 times,
last edit by bdfd at Jul 15, 2016, 6:29:04 AM]
Western Europa
Joined: Mar 29, 2014
Post Count: 2614
Status:
Offline
Re: Solar house
More ... For winter : vertical geothermal heating and wood stove in extra.
----------------------------------------
Evil progresses when good people do nothing! --- SH3D 7.1 and nothing else - W11 64b in 4K
Joined: Jul 6, 2015
Post Count: 40
Status:
Offline
Re: Solar house
Cool bdfd! Great trick. It looked so good I thought you had a separate model! Thanks.
About the heat pump. I try to create a house that has very small energy needs for heating. Vertical geothermal will probably not be cost effective anymore. So I am thinking about an air/water heat pump. Winters in the Netherlands are getting warmer and warmer anyway
